CRO fitting with CMIP6 models#

This tutorial illustrates how to use the pyCRO to estimate RO parameters from all CMIP6 models

Contact:

Load library#

[1]:

%config IPCompleter.greedy = True
%matplotlib inline
%config InlineBackend.figure_format='retina'

%load_ext autoreload
%autoreload 2

import os
import sys

import numpy as np
import xarray as xr
import matplotlib.pyplot as plt

## comment this if you install pyCRO already
sys.path.append(os.path.abspath("../../../"))

import pyCRO

Load ENSO timeseries from CMIP6 models#

[2]:

# load observations
file_name = os.path.join(os.getcwd(), "../../../data", "CROdata_timeseries_CMIP6.nc")
cmip_ds = xr.open_dataset(file_name)
cmip_ds

[2]:

<xarray.Dataset> Size: 1MB
Dimensions:  (model: 48, time: 1332)
Coordinates:
  * time     (time) datetime64[ns] 11kB 1900-01-01 1900-02-01 ... 2010-12-01
  * model    (model) <U15 3kB 'ACCESS-CM2' 'ACCESS-ESM1-5' ... 'UKESM1-0-LL'
Data variables:
    Nino3    (model, time) float32 256kB ...
    Nino34   (model, time) float32 256kB ...
    Hm       (model, time) float32 256kB ...
    Hw       (model, time) float32 256kB ...

Fitting RO to the all CMIP6 models#

[3]:

def fit_dict_to_dataset(fit_dict):
    """
    Convert a single fit dictionary into an xarray.Dataset.
    Assigns dimensions based on the length of the parameter list:
        len=1 -> 'ac_0'
        len=3 -> 'ac_1'
        len=5 -> 'ac_2'
    Empty lists are replaced with np.nan (float).

    Parameters
    ----------
    fit_dict : dict
        Dictionary where keys are parameter names and values are lists.

    Returns
    -------
    xr.Dataset
    """
    data_vars = {}

    for k, v in fit_dict.items():
        if len(v) == 0:
            arr = np.array([np.nan], dtype=float)
            dim = "ac_0"
        elif len(v) == 1:
            arr = np.array(v, dtype=float)
            dim = "ac_0"
        elif len(v) == 3:
            arr = np.array(v, dtype=float)
            dim = "ac_1"
        elif len(v) == 5:
            arr = np.array(v, dtype=float)
            dim = "ac_2"
        else:
            # Other lengths: convert to float, pad with nan if needed
            arr = np.array(v, dtype=float)
            dim = f"ac_{len(v)}"

        data_vars[k] = (dim, arr)

    return xr.Dataset(data_vars)


def CRO_cmip6_fitting(par_option_T, par_option_h, par_option_noise, verbose=False):
    """
        fit all cmip6 models with the same T, h, and noise options
    """

    for i, model in enumerate(cmip_ds.model.values):
        par_tmp = pyCRO.RO_fitting(cmip_ds['Nino34'].sel(model=model), cmip_ds['Hm'].sel(model=model),
                                   par_option_T, par_option_h, par_option_noise, verbose=verbose)
        par_ds = fit_dict_to_dataset(par_tmp).assign_coords({'model': model})

        if i==0:
            par_cmip = par_ds
        else:
            par_cmip = xr.concat([par_cmip, par_ds], dim='model')
    return par_cmip

Type 1: Linear-White-Additive#

Fit linear RO with white and additive noise

[4]:

par_option_T = {"R": 1, "F1": 1, "b_T": 0, "c_T": 0, "d_T": 0}
par_option_h = {"F2": 1, "epsilon": 1, "b_h": 0}
par_option_noise = {"T": "white", "h": "white", "T_type": "additive"}

par_cmip_LWA = CRO_cmip6_fitting(par_option_T, par_option_h, par_option_noise)
par_cmip_LWA

[4]:

<xarray.Dataset> Size: 9kB
Dimensions:  (model: 48, ac_0: 1)
Coordinates:
  * model    (model) <U15 3kB 'ACCESS-CM2' 'ACCESS-ESM1-5' ... 'UKESM1-0-LL'
Dimensions without coordinates: ac_0
Data variables: (12/16)
    R        (model, ac_0) float64 384B -0.0277 0.04347 ... 0.07818 0.006757
    F1       (model, ac_0) float64 384B 0.03008 0.0195 ... 0.03125 0.02193
    F2       (model, ac_0) float64 384B 1.138 1.671 1.259 ... 1.106 1.602 1.103
    epsilon  (model, ac_0) float64 384B 0.08306 0.1292 0.1211 ... 0.1831 0.09856
    b_T      (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    c_T      (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    ...       ...
    B        (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    m_T      (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    m_h      (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    n_T      (model, ac_0) float64 384B 1.0 1.0 1.0 1.0 1.0 ... 1.0 1.0 1.0 1.0
    n_h      (model, ac_0) float64 384B 1.0 1.0 1.0 1.0 1.0 ... 1.0 1.0 1.0 1.0
    n_g      (model, ac_0) float64 384B 2.0 2.0 2.0 2.0 2.0 ... 2.0 2.0 2.0 2.0

Type 2: Nonlinear-White-Additive#

Fit nonlinear RO with red and additive noise

[5]:

par_option_T = {"R": 1, "F1": 1, "b_T": 1, "c_T": 1, "d_T": 1}
par_option_h = {"F2": 1, "epsilon": 1, "b_h": 1}
par_option_noise = {"T": "white", "h": "white", "T_type": "additive"}

par_cmip_NWA = CRO_cmip6_fitting(par_option_T, par_option_h, par_option_noise)
par_cmip_NWA

[5]:

<xarray.Dataset> Size: 9kB
Dimensions:  (model: 48, ac_0: 1)
Coordinates:
  * model    (model) <U15 3kB 'ACCESS-CM2' 'ACCESS-ESM1-5' ... 'UKESM1-0-LL'
Dimensions without coordinates: ac_0
Data variables: (12/16)
    R        (model, ac_0) float64 384B -0.02369 0.06183 ... 0.1074 0.0235
    F1       (model, ac_0) float64 384B 0.03023 0.01987 ... 0.0325 0.02317
    F2       (model, ac_0) float64 384B 1.129 1.654 1.259 ... 1.105 1.605 1.109
    epsilon  (model, ac_0) float64 384B 0.08266 0.1288 0.1332 ... 0.187 0.1002
    b_T      (model, ac_0) float64 384B 0.01088 -0.002446 ... 0.03614 0.03063
    c_T      (model, ac_0) float64 384B 0.0006461 0.00857 ... 0.005134 0.002772
    ...       ...
    B        (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    m_T      (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    m_h      (model, ac_0) float64 384B nan nan nan nan nan ... nan nan nan nan
    n_T      (model, ac_0) float64 384B 1.0 1.0 1.0 1.0 1.0 ... 1.0 1.0 1.0 1.0
    n_h      (model, ac_0) float64 384B 1.0 1.0 1.0 1.0 1.0 ... 1.0 1.0 1.0 1.0
    n_g      (model, ac_0) float64 384B 2.0 2.0 2.0 2.0 2.0 ... 2.0 2.0 2.0 2.0

Understanding relationship between ENSO amplitude and RO parameters#

Calculation of seasonal variance

[6]:

cmip_SD = cmip_ds['Nino34'].var('time')

[7]:

fig, axes = plt.subplots(1, 2, figsize=(8, 4), sharey=True, layout='compressed')

ax = axes[0]
ax.scatter((par_cmip_LWA['R']-par_cmip_LWA['epsilon'])*0.5, cmip_SD, label='Linear RO')
ax.scatter((par_cmip_NWA['R']-par_cmip_NWA['epsilon'])*0.5, cmip_SD, label='Nonlinear RO')
ax.set_xlabel('BJ (month$^{-1}$)')
ax.set_ylabel(r"Nino34 index variance (K$^2$)")
ax.legend(fontsize=9)

ax = axes[1]
ax.scatter(par_cmip_LWA['sigma_T'], cmip_SD, label='Linear RO')
ax.scatter(par_cmip_NWA['sigma_T'], cmip_SD, label='Nonlinear RO')
ax.set_xlabel(r"$\sigma_T$ (K month$^{-1/2}$)")

[7]:

Text(0.5, 0, '$\\sigma_T$ (K month$^{-1/2}$)')
../_images/notebooks_fitting_cmip6_14_1.png

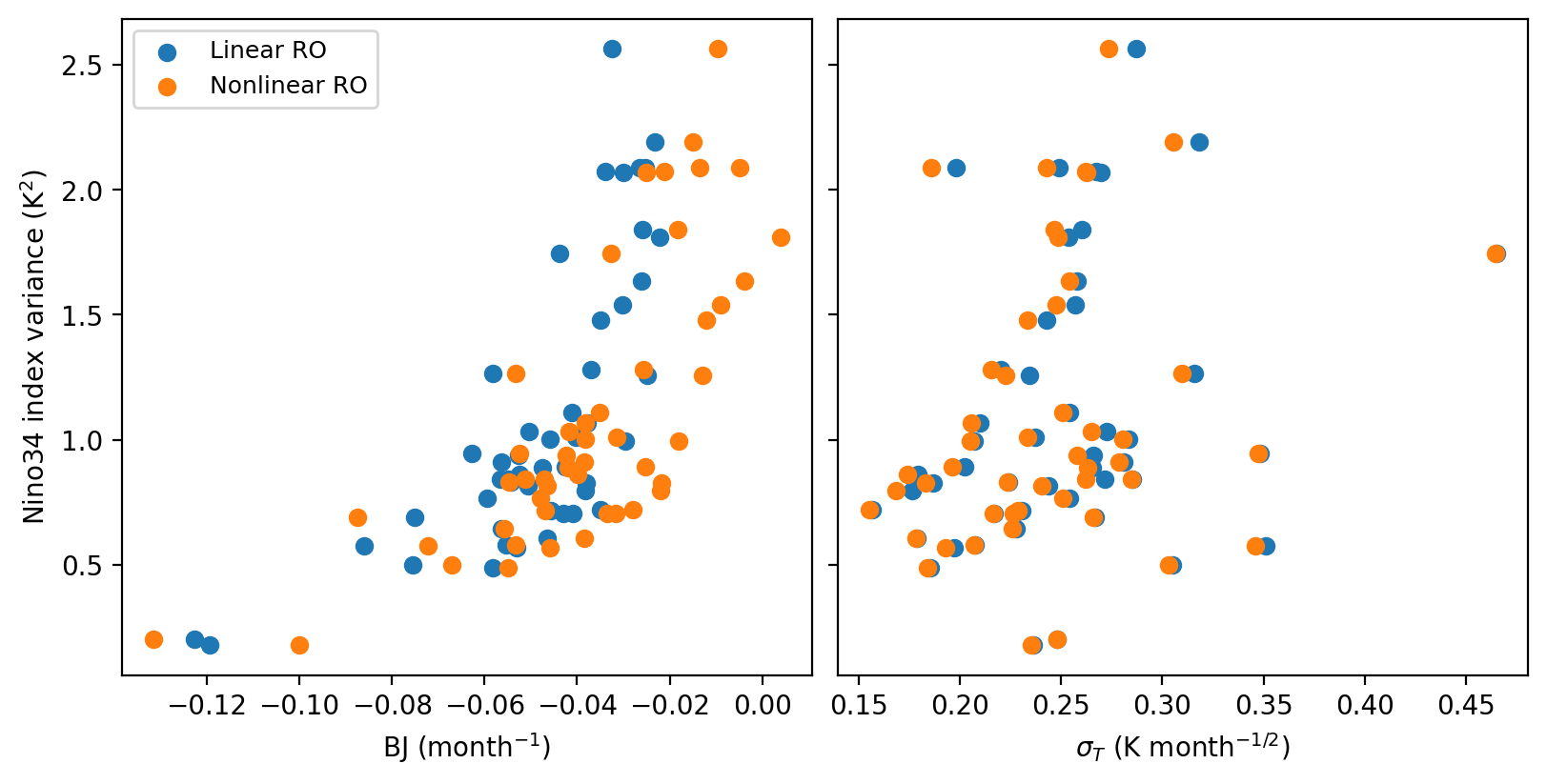

The ENSO amplitude is highly related the growth rate (BJ index) and a less degree to noise amplitude.
